wet-prime series

wet-prime series

ELECTRIC PUMP VERSION AVAILABLE

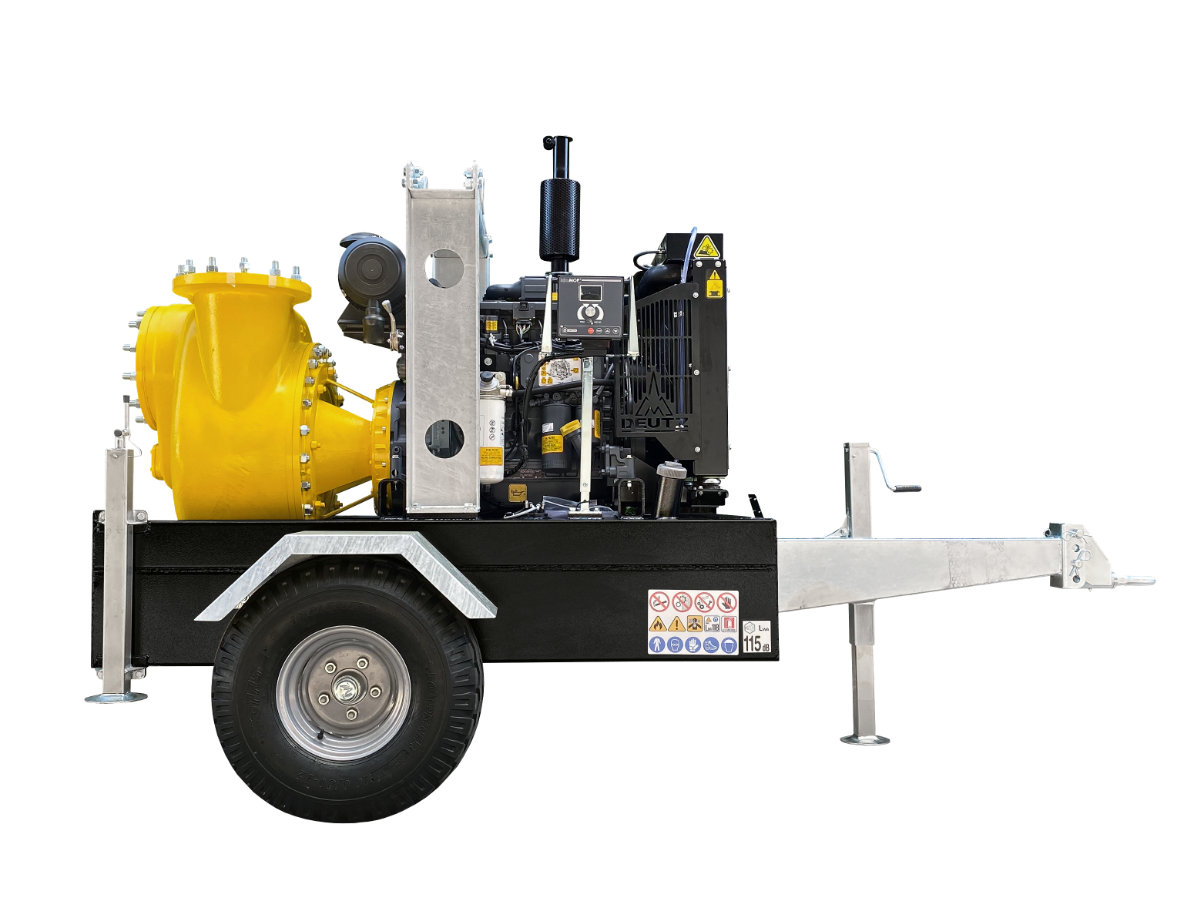

Self-priming motor pumps built on frame with wheels and built-in tank, parking jacks, electric start with battery and engine protection control unit.
Ideal for drainage and any other more demanding application on construction sites and in the industrial and emergency sectors. The pumping of more abrasive fluids with a high passage of solid parts is guaranteed by the robustness of the hydraulic system and the exclusive impeller, of the type with open blades and double curvature.

ASK FOR INFO

MODELLO	DN	PREVALENZA MAX	PORTATA MAX	PASSAGGIO SOLIDI	CENTRALINA	EMISSIONI
	Ø	m	m³/h	mm
KOHLER
LZ17-223Ab/SP	Ø60	50	50	40X30	STANDARD MOTORE	N.E.
LZ20W-223Ab/SP	Ø60	50	50	40X30	EASYMOP	STAGE V
LZ23W-223Ae/SP	Ø60	65	50	40X30	EASYMOP	STAGE V
LZ17-333Ab/SP	Ø80	30	120	40X35	STANDARD MOTORE	N.E.
LZ20W-333Ab/SP	Ø80	30	120	40X35	EASYMOP	STAGE V
LZ23W-333Ae/SP	Ø80	36	120	40X35	EASYMOP	STAGE V
LZ24W-334LAf/SP	Ø80	36	130	45X40	EASYMOP	STAGE V
LZ25-334LBf/SP	Ø80	27	130	45X40	STANDARD MOTORE	N.E.
LZ23W-334LBf/SP	Ø80	27	130	45X40	EASYMOP	STAGE V
KZ50-444LAf/SP	Ø100	39	200	73X30	EASYMOP	STAGE III
KZV50-444LAf/SP	Ø100	39	200	73X30	IDROMOP ID4	STAGE V
LZ25-444LBd/SP	Ø100	24	200	73X30	STANDARD MOTORE	N.E.
LZ24W-444LAd/SP	Ø100	32	200	73X30	EASYMOP	STAGE V
KZ50-664Ad/SP	Ø150	26	360	73X50	EASYMOP	STAGE III
KZV50-664Af/SP	Ø150	33	360	73X50	IDROMOP ID4	STAGE V
LZ24W-664Bd/SP	Ø150	22	360	73X50	EASYMOP	STAGE V
KZV65-885Bc/SP	Ø200	28	620	78X75	IDROMOP ID4	STAGE V
KZV65-10105Ac/SP	Ø250	31	850	85X85	IDROMOP ID4	STAGE V
YANMAR
YZ30-334LAf/SP	Ø80	36	130	45X40	EASYMOP	STAGE III
YZ30-444LAd/SP	Ø100	32	200	73X30	EASYMOP	STAGE III
YZ40-444LAf/SP	Ø100	39	200	73X30	EASYMOP	STAGE III
YZ40-664Ad/SP	Ø150	26	360	73X50	EASYMOP	STAGE III
YZ70-664Af/SP	Ø150	33	360	73X50	EASYMOP	STAGE II
YZ30-664Bd/SP	Ø150	22	360	73X50	EASYMOP	STAGE III
YZ70-885Bc/SP	Ø200	28	620	78X75	EASYMOP	STAGE II
YZ70-10105Bc/SP	Ø250	28	800	85X85	EASYMOP	STAGE II
HATZ
HZV60-444LAf/SP	Ø100	39	200	73X30	IDROMOP ID4	STAGE V
HZV60-664Af/SP	Ø150	33	360	73X50	IDROMOP ID4	STAGE V
HZV80-885Bc/SP	Ø200	28	620	78X75	IDROMOP ID4	STAGE V
HZV80-10105Bc/SP	Ø250	28	800	85X85	IDROMOP ID4	STAGE V
IVECO-FPT
IZ87-664Af/SP	Ø150	33	360	73X50	EASYMOP	STAGE II
IZ96-885Ac/SP	Ø200	34	750	78x75	EASYMOP	STAGE II
IZV105-885Ac/SP	Ø200	34	750	78X75	IDROMOP ID4	STAGE V
IZ120-885Ae/SP	Ø200	42	750	78X75	EASYMOP	STAGE II
IZV160-885Ae/SP	Ø200	42	750	78X75	IDROMOP ID4	STAGE V
IZ87-885Bc/SP	Ø200	28	620	78X75	EASYMOP	STAGE II
IZ87-10105Ac/SP	Ø250	31	850	85x85	EASYMOP	STAGE II
IZ120-10105Ae/SP	Ø250	40	900	85X85	EASYMOP	STAGE II
IZV105-10105Ae/SP	Ø250	40	900	85X85	IDROMOP ID4	STAGE V
IZ120-12126Aa/SP	Ø300	16	1300	105x100	EASYMOP	STAGE II
IZV160-12126Aa/SP	Ø300	16	1300	105x100	IDROMOP ID4	STAGE V
IZ200-12126Ab/SP	Ø300	20	1300	105x100	EASYMOP	STAGE II
IZV180-12126Ab/SP	Ø300	20	1300	105x100	IDROMOP ID4	STAGE V
DEUTZ
DZ35-334LAf/SP	Ø80	36	130	45X40	EASYMOP	STAGE II
DZ35-444LAd/SP	Ø100	32	200	73X30	EASYMOP	STAGE II
DZ50-444LAf/SP	Ø100	39	200	73X30	EASYMOP	STAGE II
DZ50-664Ad/SP	Ø150	26	360	73X50	EASYMOP	STAGE II
DZ70-664Af/SP	Ø150	33	360	73X50	EASYMOP	STAGE II
DZ105-885Ac/SP	Ø200	34	750	78x75	EASYMOP	STAGE II
DZ150-885Ae/SP	Ø200	42	750	78X75	EASYMOP	STAGE II
DZ80-885Bc/SP	Ø200	28	620	78X75	EASYMOP	STAGE II
DZ105-10105Ae/SP	Ø250	40	900	85X85	EASYMOP	STAGE II
DZ80-10105Bc/SP	Ø250	28	800	85X85	EASYMOP	STAGE II
DZ150-12126Ab/SP	Ø300	20	1300	105x100	EASYMOP	STAGE II
BAUDOUIN
BZ50-664Ad/SP	DN150	26	360	73X50	EASYMOP	N.E.
BZ40-664Bd/SP	DN150	22	360	73X50	EASYMOP	N.E.
BZ160-885Ae/SP	DN200	42	750	78X75	EASYMOP	N.E.
BZ160-10105Ae/SP	DN250	40	900	85X85	EASYMOP	N.E.
BZ80-10105Bc/SP	DN250	28	800	85X85	EASYMOP	N.E.
BZ160-12126Aa/SP	DN300	16	1300	105x100	EASYMOP	N.E.
BZ220-12126Ab/SP	DN300	20	1300	105x100	EASYMOP	N.E.
