Frog

Frog

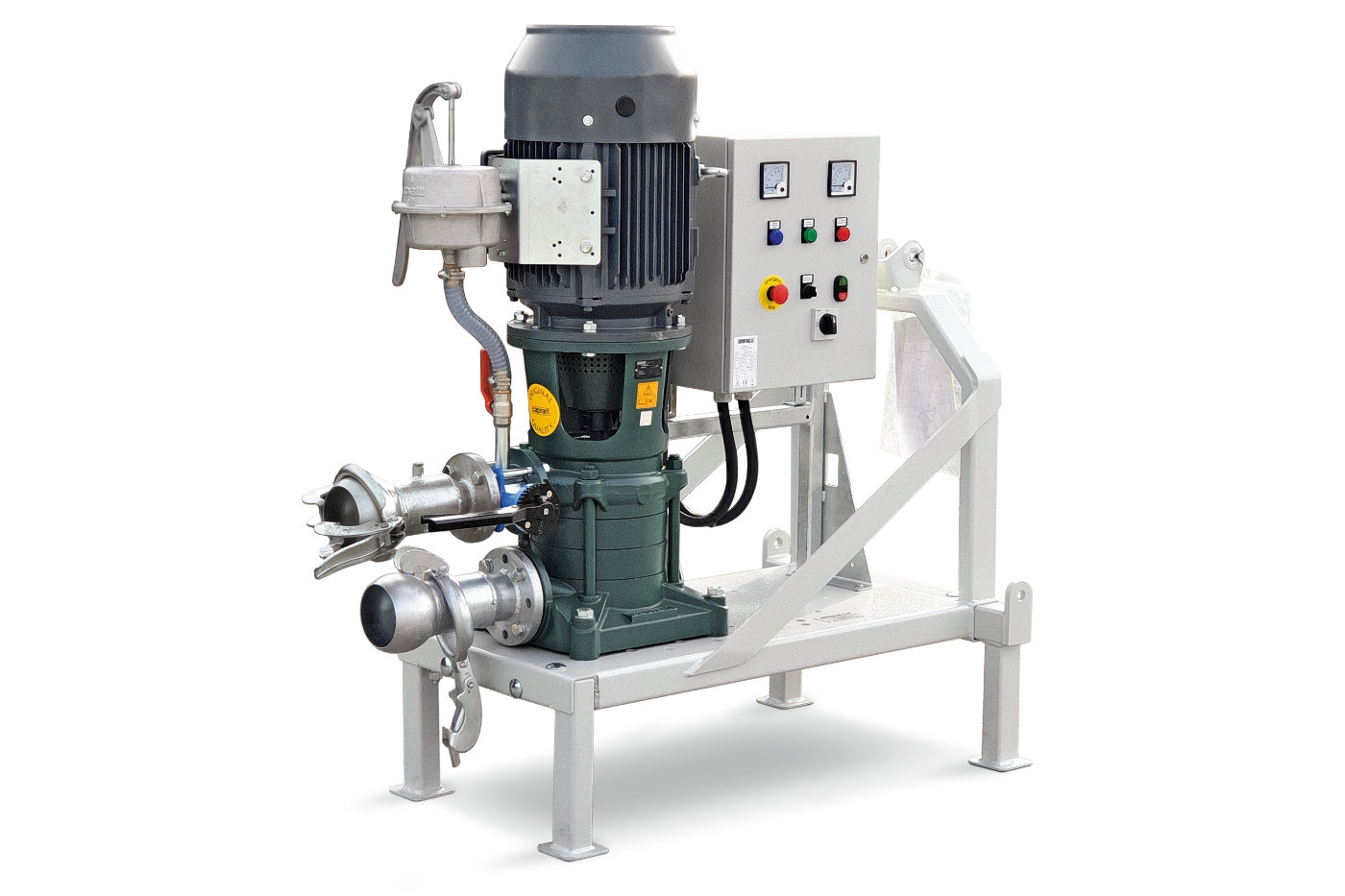

Electric pump units, consisting of verticalelectric pumps up to 37 KW, positionedon a 3-point linkage steel frame forlifting and no. 4 stationary feet, (availablealso on slow speed trailer).

On-board electric panel with a choiceof star delta / soft start / inverter. Widepossibility of customising electricalpanels (timers, phase control, delay timers,etc.)

Possibility of remote management viainterface with IdroMOP control unit. It is also possible to get the unit on amobile frame (on 2 wheels) for easierhandling, possibility to choose between different priming.

ASK FOR INFO

FROG C

Tipo di pompaPortata max L / MIN.Pressione max MT.
FROG 20 CHVU 50/2C - 15 KW132080
FROG 25 CHVU 50/2A -18,5 KW132096
FROG 30 CHVU 50/3C - 22 KW1440120
FROG 40 CHVU 50/3A - 30 KW1320143
FROG 50 CHVU 50/4 - 37 KW1320185
FROG 50-2 CHVU 65/2E - 37 KW1800118

FROG R

Tipo di pompaPortata max L / MIN.Pressione max MT.
FROG 20 RME20KV65-50-5 - 15 KW120085
FROG 25 RME25KV65-50-6 - 18,5 KW1200102
FROG 30 RME30KV65-50-7 - 22 KW1200122
FROG 30-2 RME30KV80-60-2P - 22 KW150083
FROG 35 RME 35KV80-60-2P - 26 KW1250106
FROG 35-2 RME35KV80-90-2P - 26 KW150089
FROG 40 RME40KV80-60-3P - 30 KW1250131
FROG 50 RME50KV80-60-3P - 37 KW1250162
